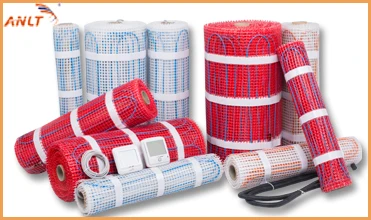

2017 Home Heating Electric Underfloor Heating Mat with Thermostat

2017 Home Heating Electric Underfloor Heating Mat with Thermostat

Make your home a warm house. Make your house a warm home. Electric Underfloor Heating Mat Electric Heated Floor Mat Electric Warm Floor Mat Infrared Heating Mat Radiant Heating Mat

Benefits

There are various types of heating including natural or propane gas and oil, but electric heat, though not always the most efficient

cost-wise (depending on your electricity rates), is probably the most common - mainly because it is readily available in most areas.

Compared to other heating systems, the investment costs for electric underfloor heating are extremely low.

No need for maintenance contracts once the system is installed.

Convenience -- Easy to fix by adhering to the floor and design to install at the site.

All-in-one -- Complete All-in-one with the mat (fiber-glass mesh) and cable to facilitate convenience in the plastering finish.

Flexibility -- possible to install flexibly in any shape at any place.

Easy Installation -- When the mat is unfolded, the cable is attached at certain& intervals and it can be automatically installed.

Separate control for each area. Each area or room can be activated separately.

Installation Guidance

Application Fields

ANLT electric underfloor heating system provides a warm, comfortable and luxurious home environment. For use in every room such as the bathroom, kitchen, living room, utility room, basement, den, or bedroom. And for use in commercial buildings and spaces such as offices, storehouse, markets, classrooms, kindergarten, hotels, hospitals, and in live-stocks and greenhouses, etc.

 Programmable Room Thermostat

ANLT07H - Programmable Touch Screen Thermostat

Power Supply: 85-250VAC

Display resolution: 0.1℃

Setting Unit: 0.5℃/step

Internal sensor measurement range: 0 - 40℃.

Setting range: 5 - 35℃ (default: 25℃)

Inside sensor: NTC B=3380 10k

@25degrees Celsius

Max. switch power: 3A/16A/30A

External sensor measurement range: 0 - 99℃.

Setting range: 5 - 95℃ (default: 50℃)

Extra sensor: NTC B=3380 10k @25 degrees Celsius, length=3 meters

Display type: LCD

Display area: 60 x 45 mm

ANLTE52 - Programmable Digital LCD Display Thermostat

Applicable for hot water radiant and electric heating system.

Voltage: 220±10%VAC, 50/60Hz
Room setting Range: 1℃~50℃ (can adjust to 15℃~90℃)

External limitation: 20℃~90℃ (factory setting 65℃)

Sensor type: NTC

Color: white ivory

Mounting: mounts directly onto wall or wall-box

Relative humidity: <85% (23℃)

Size of display: 58 mm X 35mm (H/W)

ANLT8600 - Programmable Floor Heating Room Thermostat

Power Supply: 100-240VAC 50/60Hz
Power consumption: <1.5w
Setting Time + Black light + Large LCD screen Accuracy: ±1℃
Timing error: <1%
Temperature re-range: 5 - 35℃
Rubber-thermoplastic NTC Sensor Housing material:self-extinguishing PC

ANLT71.36 - Knob / Manual Thermostat

Voltage: 220AVC+/-15% 50/60Hz
Power consumption: 3.5A
Re-range:5-30 Celsius
Maximum load:16A 3000W
Double control, LED indication working
Setting range: 10 ~55℃
Ambient temperature: -5~55℃
Protective housing: IP20

ANLTC70 - Temperature Controller

Power supply: 230 V 50 Hz
Power consumption: 5 W
Adjusting range: 5°C ~ 40°C

Differential per. temp. : 0.5°C
Operating temp.: - 5°C ~ 50°C

Degree of protection: IP20
Material: self-extinguishing PC Floor sensor: NTC sensor 3 m

1. About Us

Chengdu ANLT Thermal Technology Co., Ltd. is a leading manufacturer of Electric Floor Heating Cable & Mat, Thermostats, Temperature Controller, Communication Cables and Electric products. With advanced and cost-effective heating products, ANLT believes in engaging with customers while providing customized services. As top three leading electric heating system manufacturer in China, it is the goal of ANLT to deliver heating products with excellent quality and to offer quick services to our customers.

Experience:
Established in 2009, located in Chengdu, China which is known as “Land of Aboundance”, ANLT has proven to be reliable and trustworthy partners to help all aspects of electric heating for room heating, pipe warm preservation, snow-melting, de-icing, de-frosting, etc.
* Years of combined experience in researching and developing electric heating products.
* A factory with over 150 skilled and qualified employees, including experienced R&D engineers, technical experts and sales representatives.

2. Factory Overview

Located in Xindu Dist., Chengdu City, ANLT factory is more than 6000sq.m with over 150 skilled and qualified employees.
1. ISO9001 certified
2. Over 6000sq.m
3. More than 150skilled and qualified employees
4.10 experienced technical engineers
5. 5 qualified QC
6. 8 normal working hour with 2 shifts
7. Average production capacity is 15000sq.m per month
8. Strict and comprehensive test and inspection standard -- over 5000V high-voltage test,
9. 5 times of water-resistant test
10. 25-year warranty, at least 50-year working life

3. Our Products

-- Electric Floor Heating Mats

-- Electric Floor Heating Cables

-- Snow Melting Mats

-- Thermostats / Temperature Controllers

-- Accessories

4. Our Services

We offer an extensive array of services with products being widely used in heating application and OEM services.

5. Our Certificates

More products for your choices

Electric Floor Heating Mat     Electric Floor Heating Cable    Digital Thermostat
